Product Details
Special Class A Circuit
The special Class A circuit is our patented design which reveals the sound quality of Class A, but meanwhile ensures high efficiency as Class AB.
Lossless Connection
It support 128G USB disk & TF card and support APE, FLAC, WAV, MP3, WMA formats.
15-meter Bluetooth Transmission
It supports high-speed, low distortion, energy consumption and latency Bluetooth connection with easy connectivity and auto re-connectivity. Switch any music apps and platforms you want.
PC USB-Audio
It supports USB-Audio port for PC with PCM192kHz/24Bit sample rate to achieve real PC Hi-Fi sound effect and meet the need of audiophiles.
HDMI ARC for Better Transmission
It supports HDMI ARC to connect to TV for richer sound.
Subwoofer Connection
The SW-OUT subwoofer output jack enables a 2.1 speaker layout to bring wider range and richer sound.
Treble-bass Adjustment
It supports treble-bass independent adjustment so that you can personally adjust the parameter via App or remote control to enjoy more pleasing sound.
| Specifications | |
|---|---|
| Product type | Amplifier |
| Amplification type | Class AB |
| Number of channels | Stereo (2) |

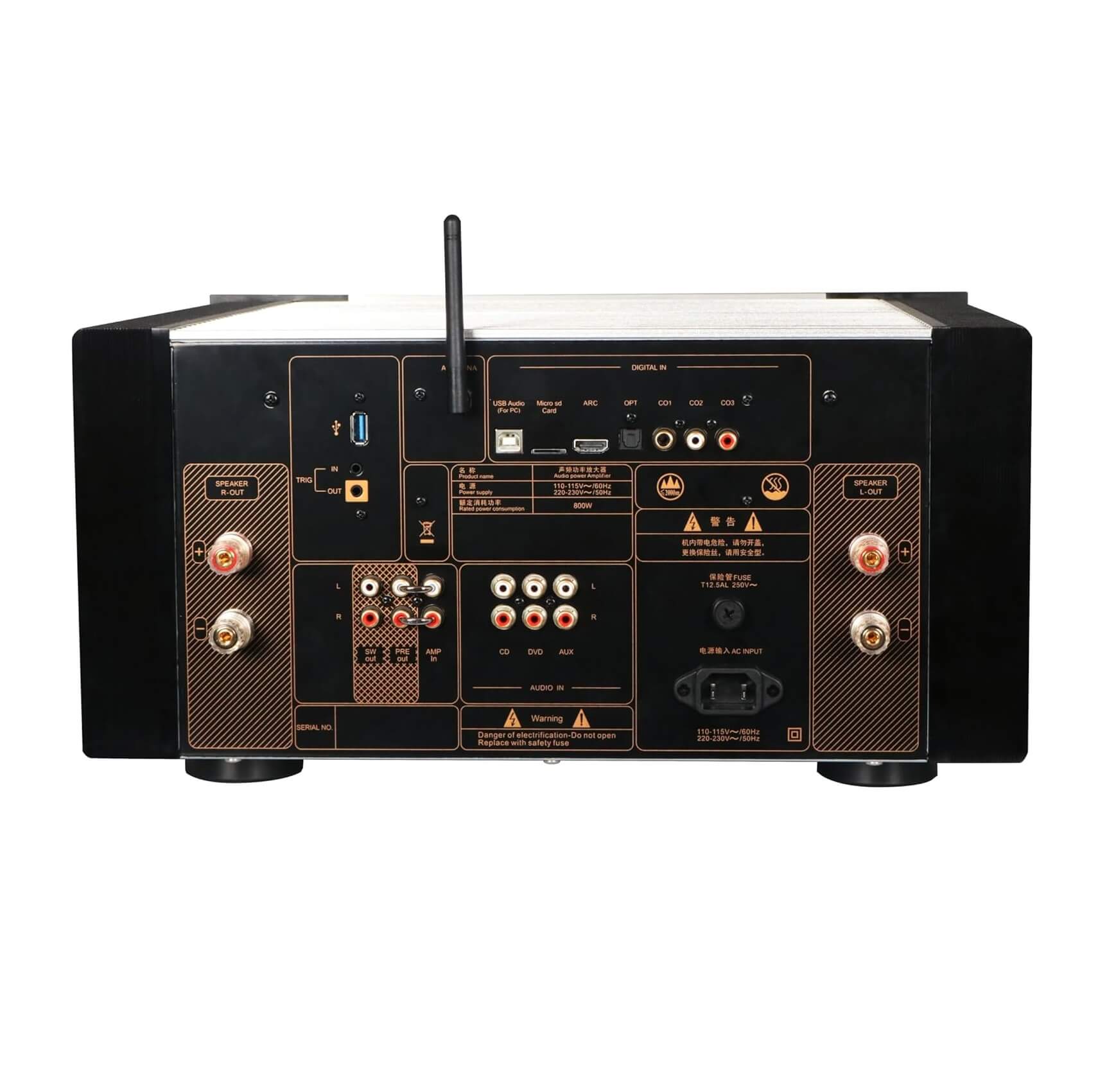

| Inputs | Bluetooth 1* USB-B (USB Audio) 1* Slot Micro SD 1* HDMI ARC 1* Optical Toslink 3* Coaxial 1* USB-A (USB Host) 3* Stereo RCA 1* 12V Trigger input |
| Outputs | Speaker terminals 1* Subwoofer output on stereo RCA 1* 12V Trigger output |
| Output power | 2*290 @ 4? 2*190 @ 8? |
| Tone control | Bass Treble |
| THD | = 0.01% (1kHz) |
| Input impedance | 10k? |
| Channel separation | = 80dB |
| SNR | = 100dB (A-Weighted) |
| Frequency response | 10Hz-90kHz (+1/-3dB) |
| Frequency response | 10Hz-90kHz (+1/-3dB) |
| Gain | > 42dB |
| General | |
|---|---|
| Supply voltage | 110-230VAC 50/60Hz |
| Dimensions (L*P*H) | 445*456*218mm |
| Net weight | 24.1kg |
| Color | Black and silver |
| Package | 1x Tonewinner AD-99D 1x Remote control (CR2016 battery not included) 1x Power cable |
