Product Details
Heat dissipation advantage

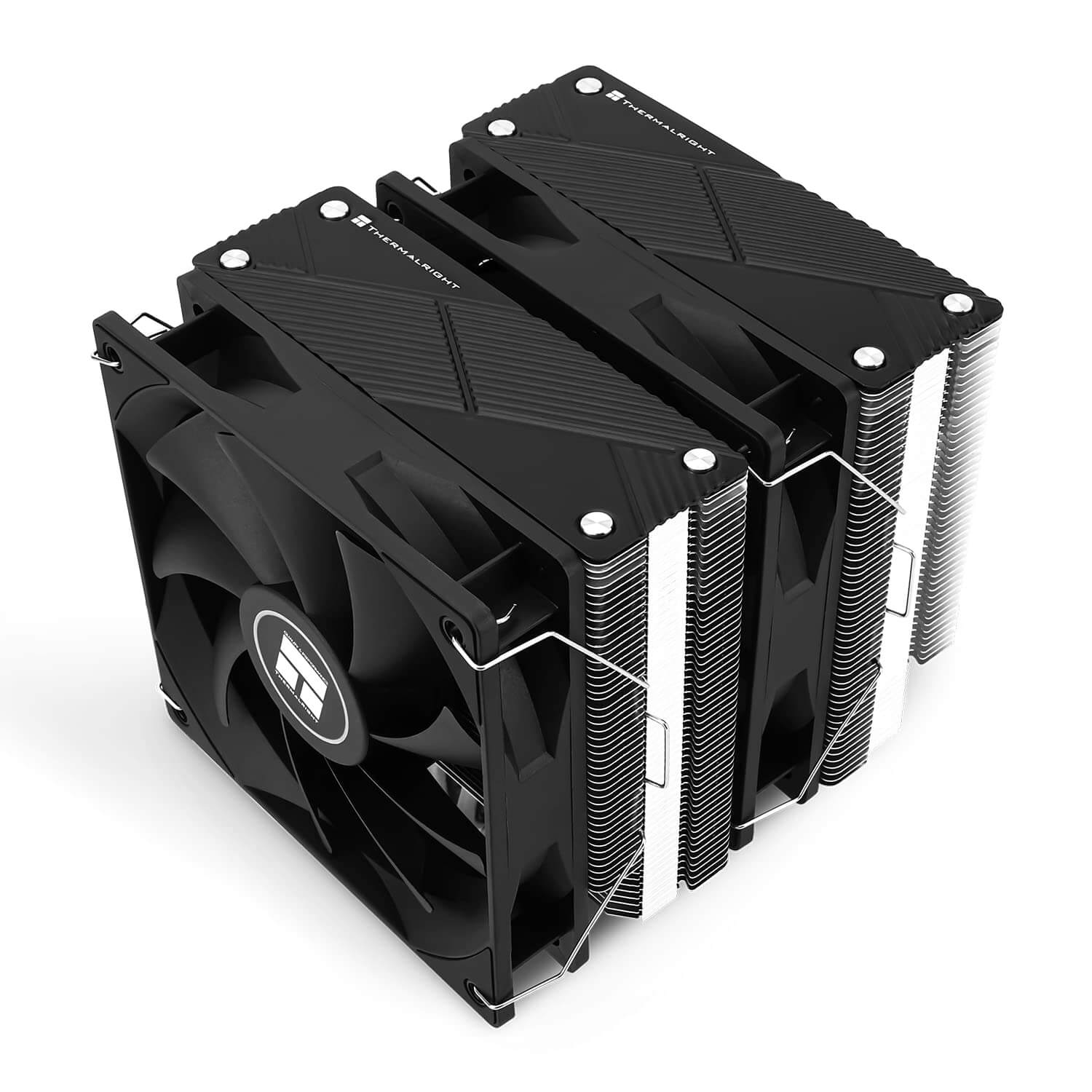

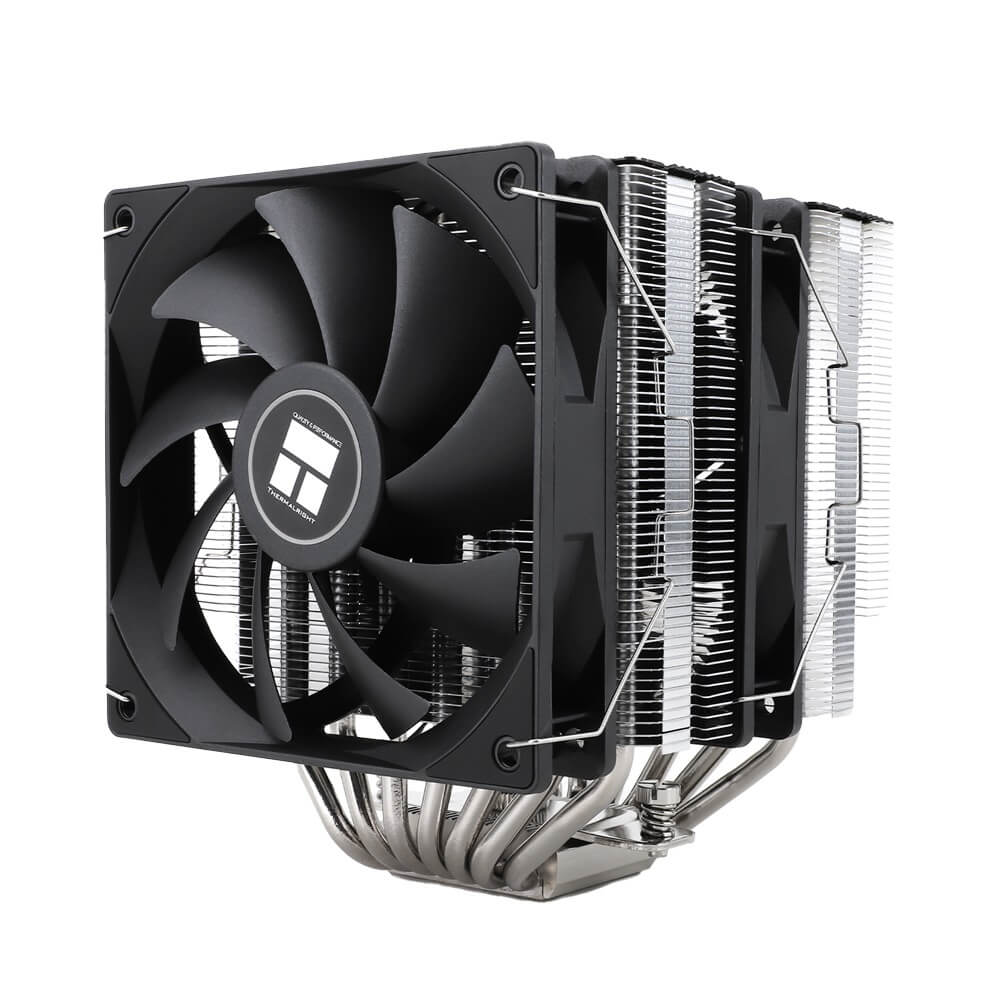

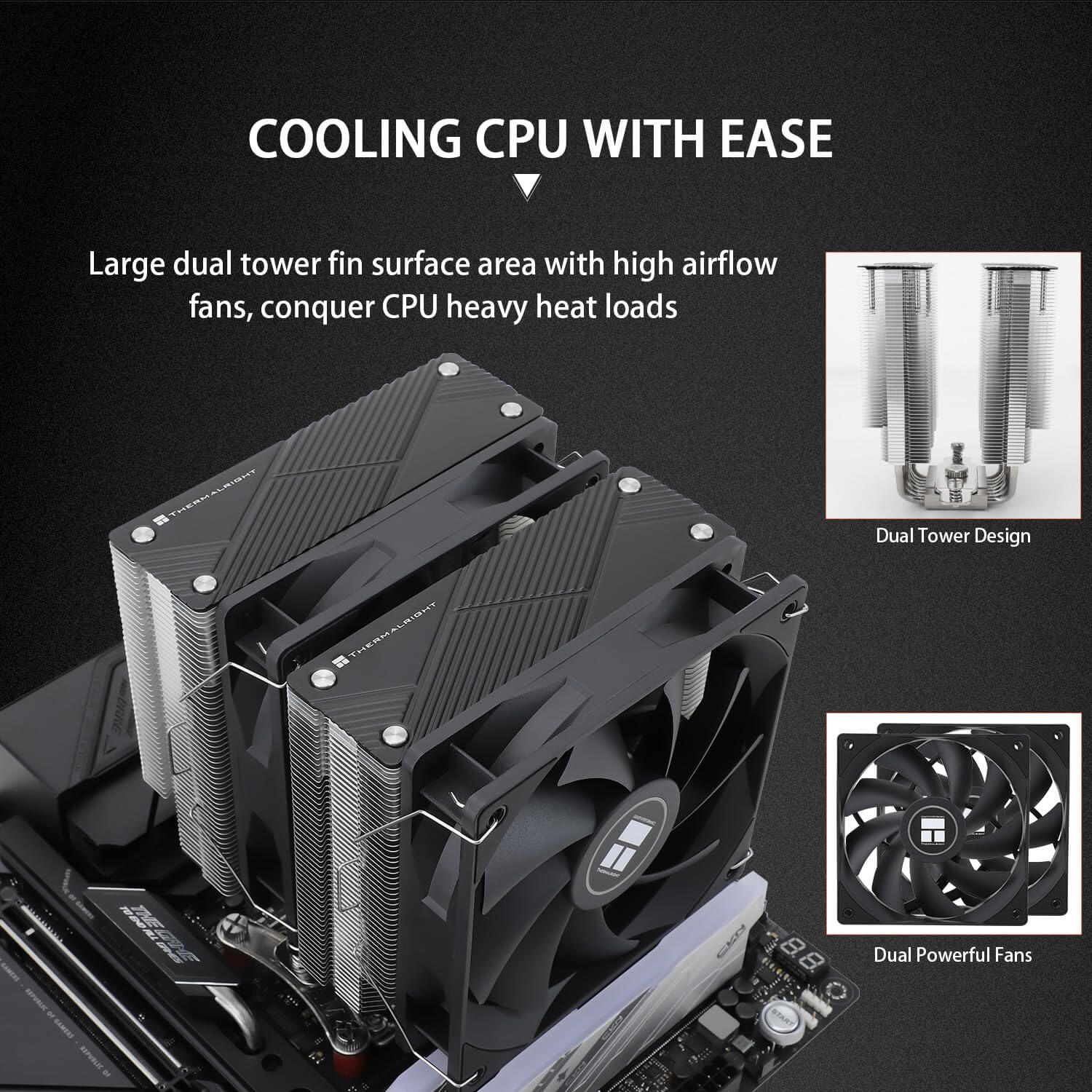

Anodized brushed black top cover + full plating heat pipes + precision micro-engraved reflow copper bottom + double fans, using the design to avoid memory cut corners, not only beautiful and better heat dissipation function, set for CPU cooling
PWM Fan

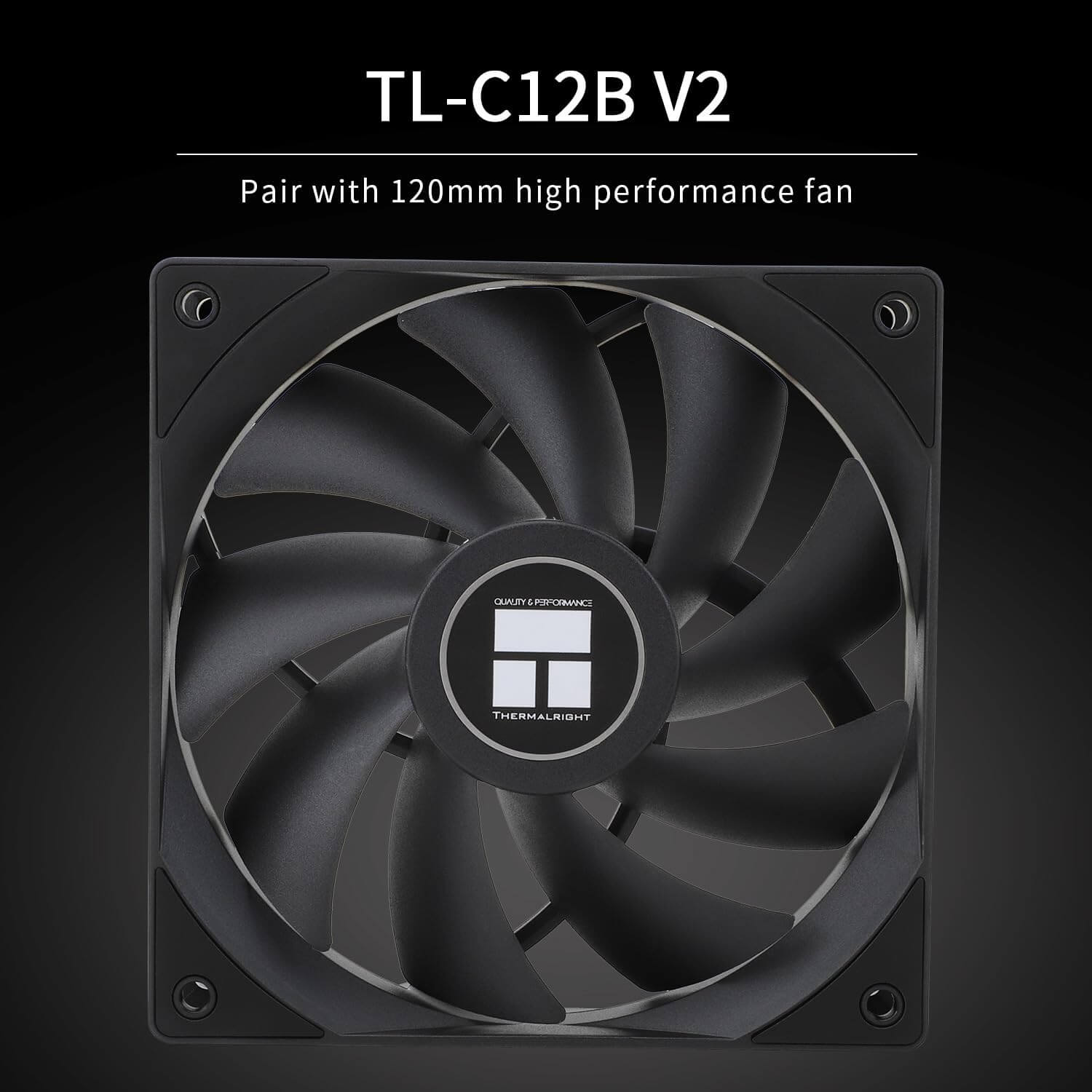

TL-C12B V2; Standard size industrial grade PWM performance PC fan: 120x120x25mm (4.92x4.92x0.98 inches); Fan speed (RPM): 1500rpm±10%; Power port: 4-pin; Voltage: 12V; Air flow: 66.17CFM (max); Noise level ≤25.6dB(A), high performance fan combined with efficient heat dissipation The cooling body of the unit gives you the best cooling effect.
More cooling details optimization
Heatsink made of insulation grade PBT+PC, Stably-FDB bearing solves the problem of fan blade shaking in the lifting mode, and the Y-type of the configuration is specially designed, one end is 3pin, the other end is 4pin, which can be used directly.The height is 157mm, compatible with a wide range of chassis models.
Compatibility
CPU cooling slot support: Intel: LGA1700/1150/1151/1155/1156/1200/2011/2066, AMD: AM4/AM5;for different CPU slot platforms, provide the corresponding mounting plate or fasteners, can be combined with the installation instructions or follow the tutorial to get on the machine.
