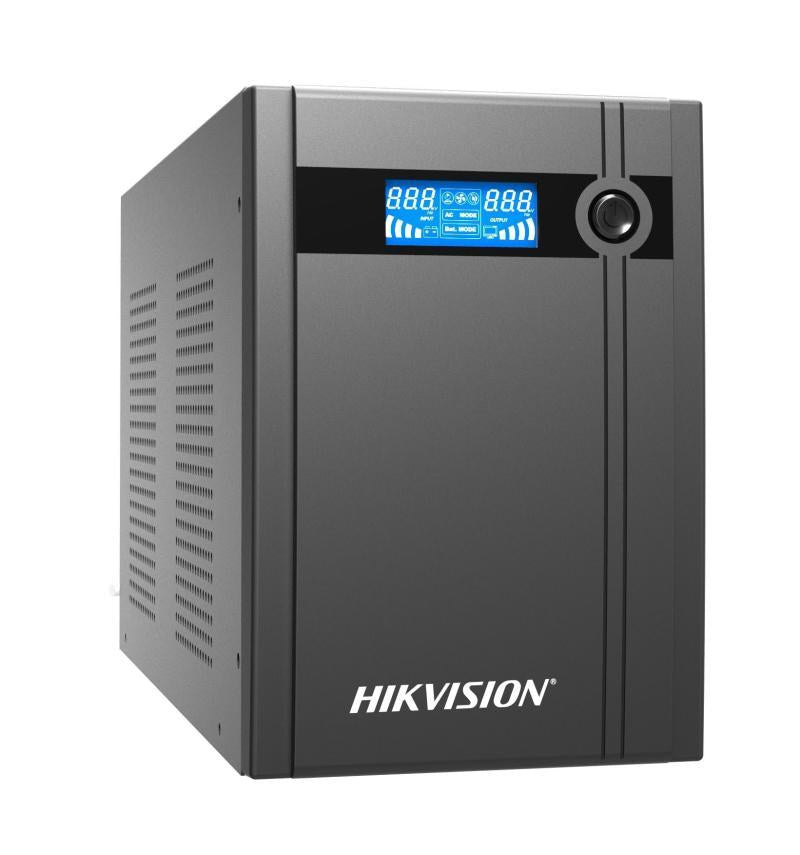

HikVision DS-UPS3000 3000VA (1800W) UPS

Power

• UPS Capacity3000 VA / 1800 W

Input

• Input Voltage Range140 VAC to 290 VAC
• Input Frequency50/60 Hz self-adaptive
• Plug TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);TYPE L (10A);UK TYPE G;Schuko

Output

• Output Voltage Range210 VAC to 235 VAC
• Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
• Transfer Time≤ 10 ms
• Waveform PWM
• Outlet Type AU TYPE I;TYPE H;Type B (NEMA 5-15);Universal;TYPE L (10/16A)
• Outlet Number6;4

Battery

• Battery Type12 V/9 Ah *4 pcs, lead-acid battery
• Recharge Time6-8 hours recover to 90% capacity
• Typical Backup Time
• Run time at 100w: 150 min
• Run time at 600w: 15 min
• Run time at 900w: 6 min

Interface

• Communicate PortsUSB

Protection

• Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

Indicator

Display

• LCD Screen
• Input Voltage, Output Voltage, Battery capacity, load level

Alarm

• Charging Mode (DC mode): Sounding every 8 seconds
• Low Battery: Sounding every second
• Overloading Mode: Sounding every 0.5 seconds
• Fault: Continuously sounding

General

• Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
• Operating Humidity30% to 90% (non-condensing)
• Dimension412 mm × 145 mm × 210 mm (16.22" × 5.71" × 8.27")
• WeightApprox. 18.5 kg (40.8 lb)
