Description
xProduct Overview

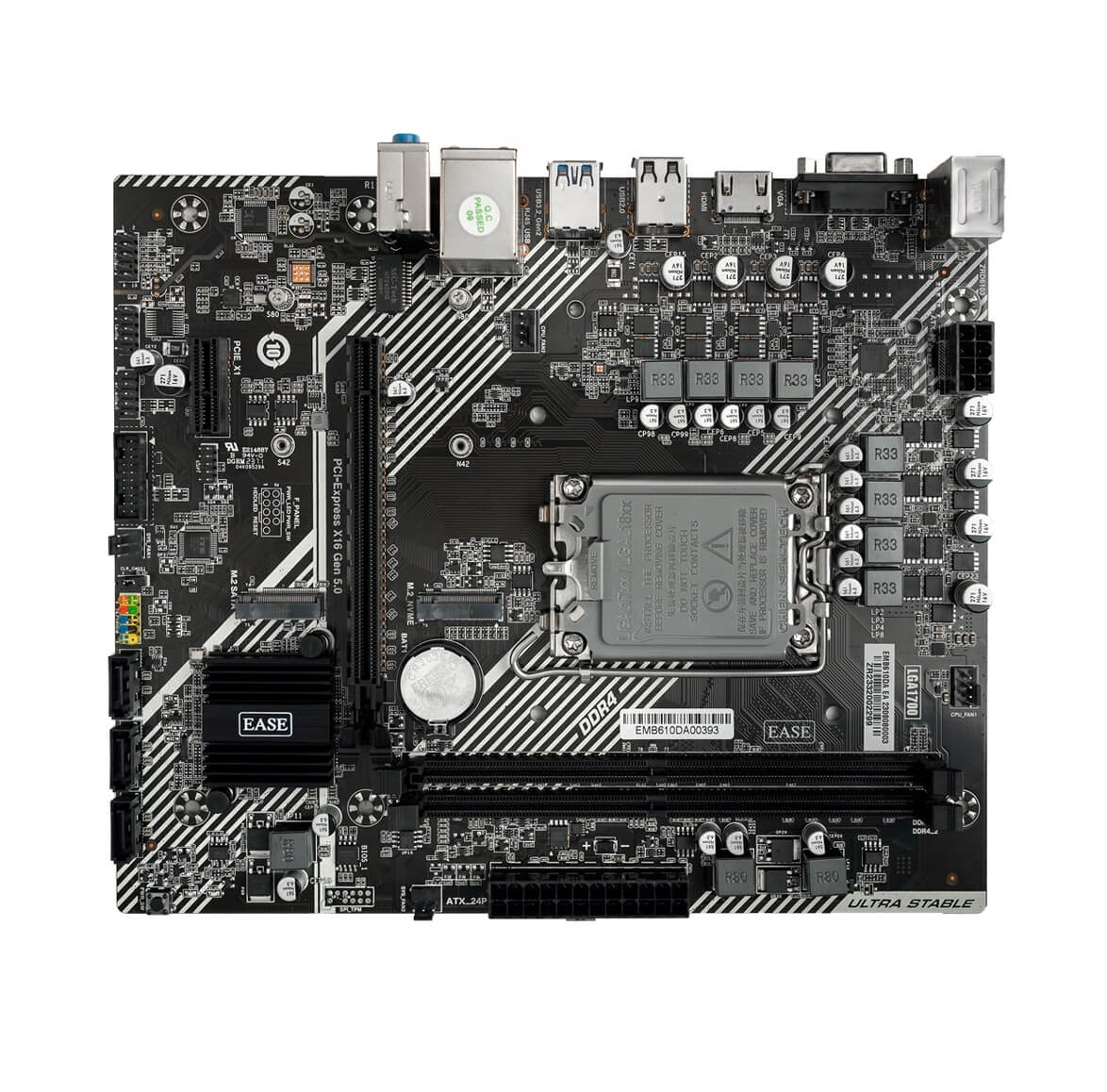

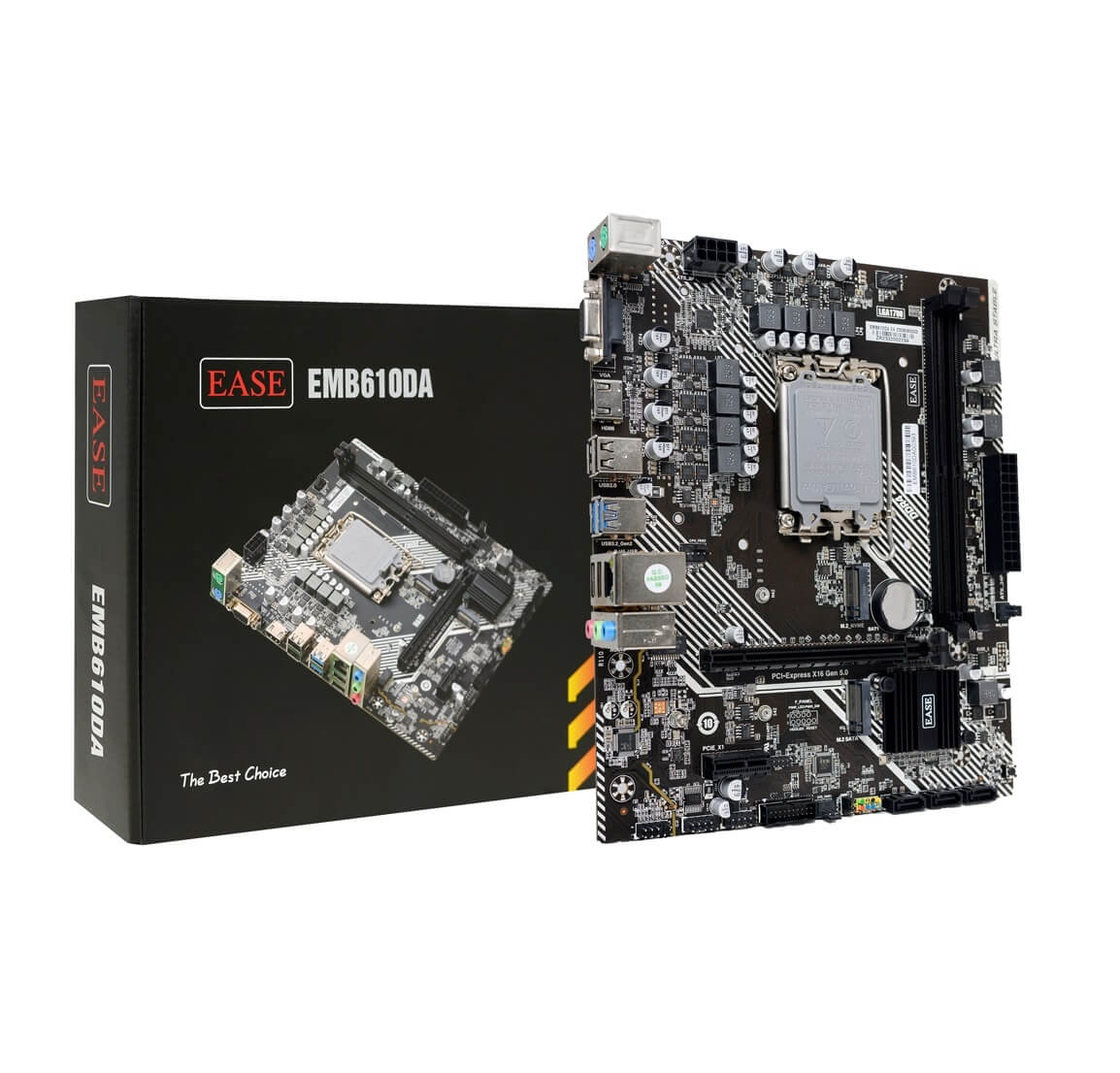

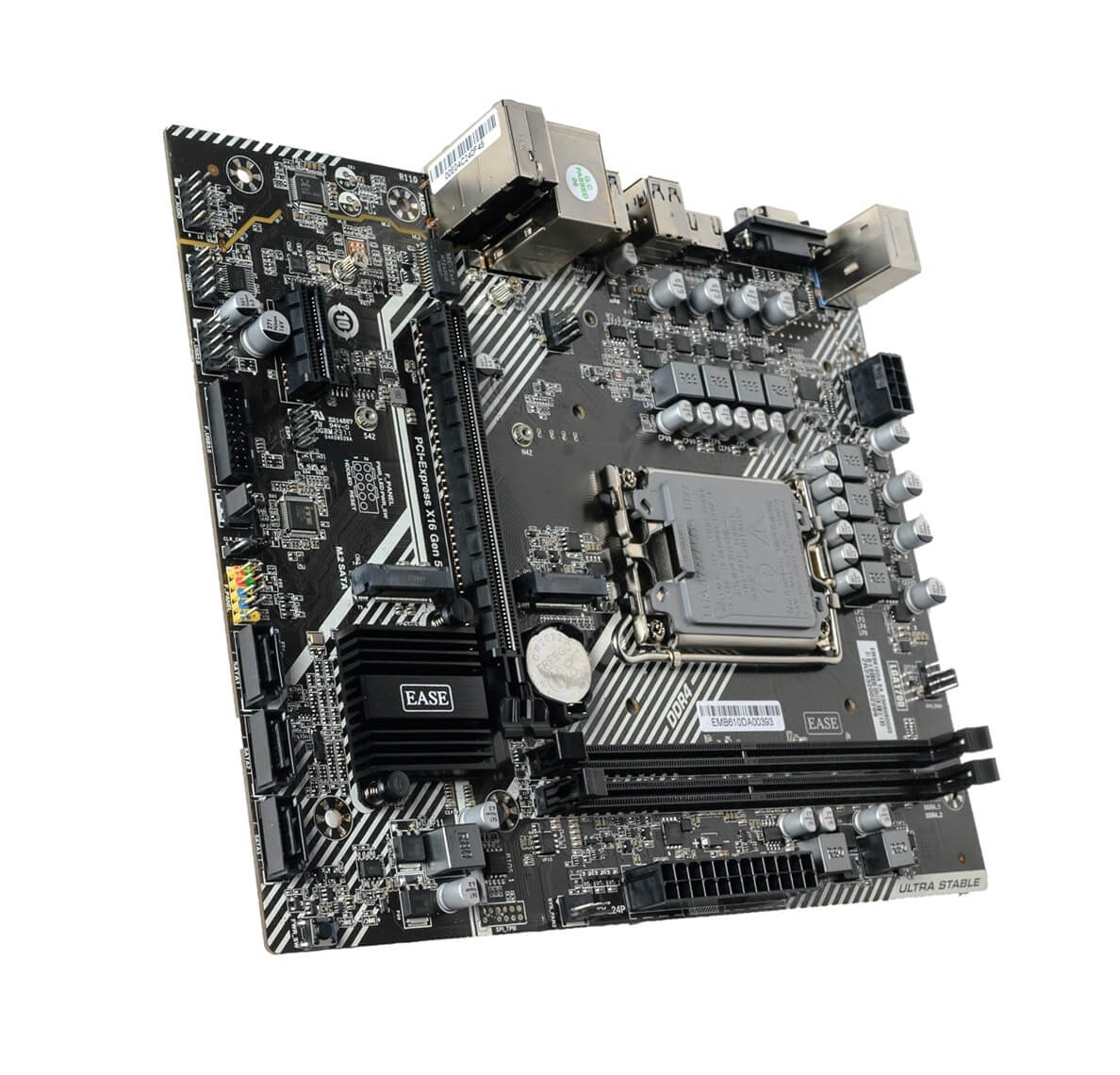

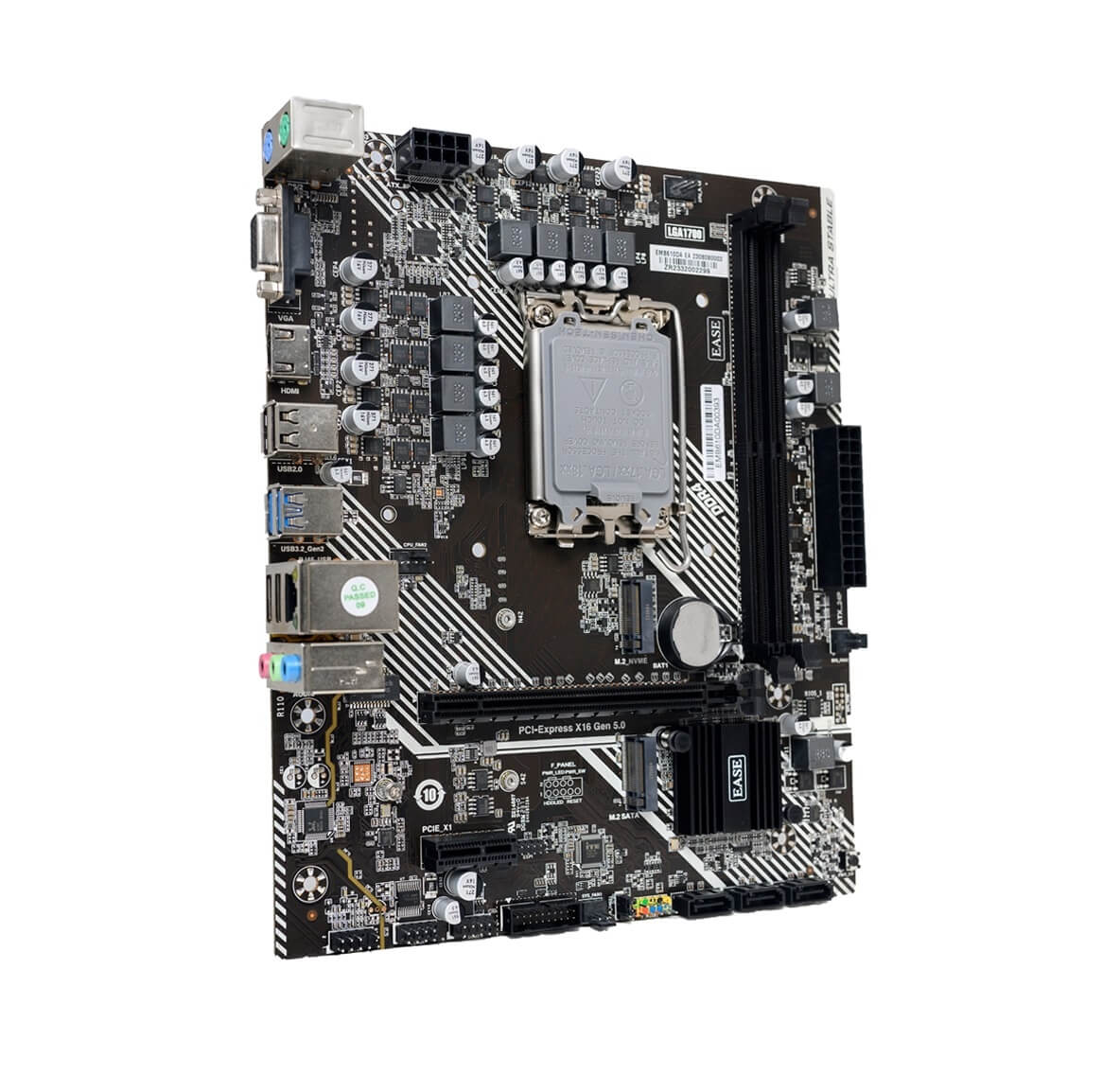

The EASE EMB610DA Intel® H610 LGA 1700 Micro ATX Motherboard is a robust and versatile motherboard designed to support the latest 12th and 13th Gen Intel® Core™ processors. Built on the Intel® H610 chipset, this motherboard offers a well-balanced feature set suitable for a range of computing needs, from everyday tasks to more demanding applications. Its Micro ATX form factor ensures compatibility with various case sizes, making it an excellent choice for both compact and standard builds.
The EASE EMB610DA is aimed at users who seek reliable performance without the premium price tag associated with high-end motherboards. It provides essential connectivity, expandability, and storage options, ensuring a smooth and efficient computing experience.
Product Description
The EASE EMB610DA combines modern features and reliable performance in a compact and cost-effective package. The motherboard's design emphasizes ease of use and flexibility, making it suitable for a variety of applications, including home office setups, gaming, and media centers. It features a clean, professional aesthetic with a black PCB and well-organized component layout.
Key Features
- Socket Type: LGA 1700
- Chipset: Intel® H610
- Form Factor: Micro ATX
- Memory Slots: 2 x DDR4 DIMM
- Expansion Slots: 1 x PCIe x16
- Storage: 4 x SATA III, 1 x M.2 Slot
- Connectivity: USB 3.2 Gen 1, USB 2.0, HDMI, Audio, LAN
Specifications
| Brand | Ease |
| Model | EMB610DA |
| Processor | Support for 12/13th Gen Intel®Core™ i9/i7/i5/i3 processors in the LGA1700 Package. |
| Chipset | Intel® H61 Chipset |
| Memory | 2 x DDR4 2133/2400/2666/2933/3200MHZ DIMM Slot, Max. to 64GB |
| LAN | Supports Realtek® Gigabit LAN |
| Audio | Chip Integrated by Realtek®, Supports 6.0 Channel Audio Out |
| Storage Interface | 3 SATA 3.0 6Gb/s ports |
| 2 M.2 Slot (Support 2242, 2280 M.2 SSD) | |

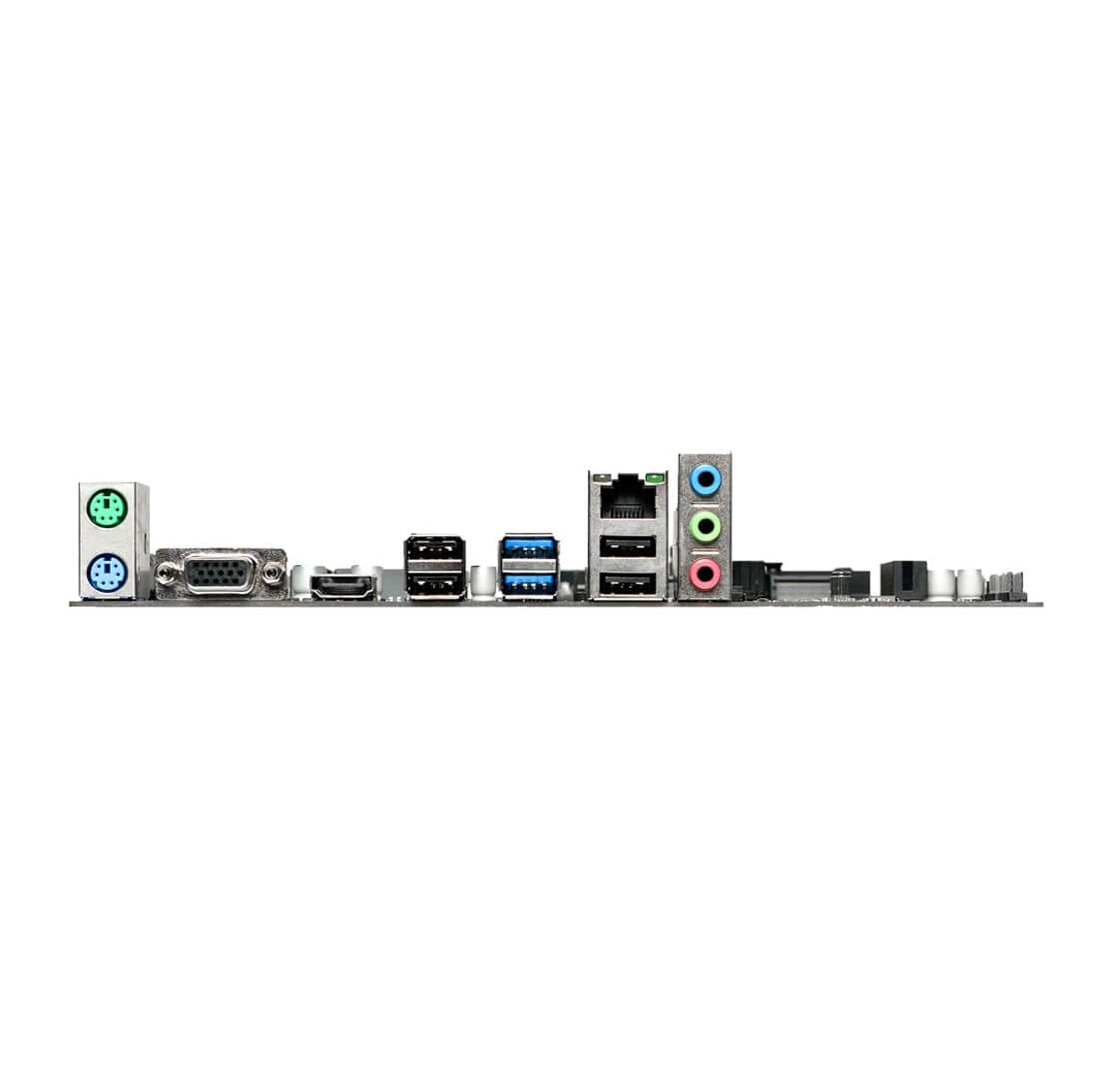

| Back Panel I/O | (1 PS/2 mouse & Keyboard port or 2 USB 2.0 Ports) |
| 1 VGA Port | |
| 2 USB 3.0 Ports | |
| 1 LAN Jack | |
| 1 HDMI Port | |
| 4 USB 2.0 Ports | |
| 3 Flexible Audio jacks | |
| On-Board Connectors | 1 USB 3.0 Connector |
| 1 Front connector | |
| 1 USB 2.0 Connector | |
| 1 Front Audio Connector | |
| Slots | 1*PCI-E x16 Slots |
| 1*PCI-E x1 Slot | |
| Form Factor | Micro- ATX (23cm x 19.2 cm), 6 mounting holes |
