Product Details

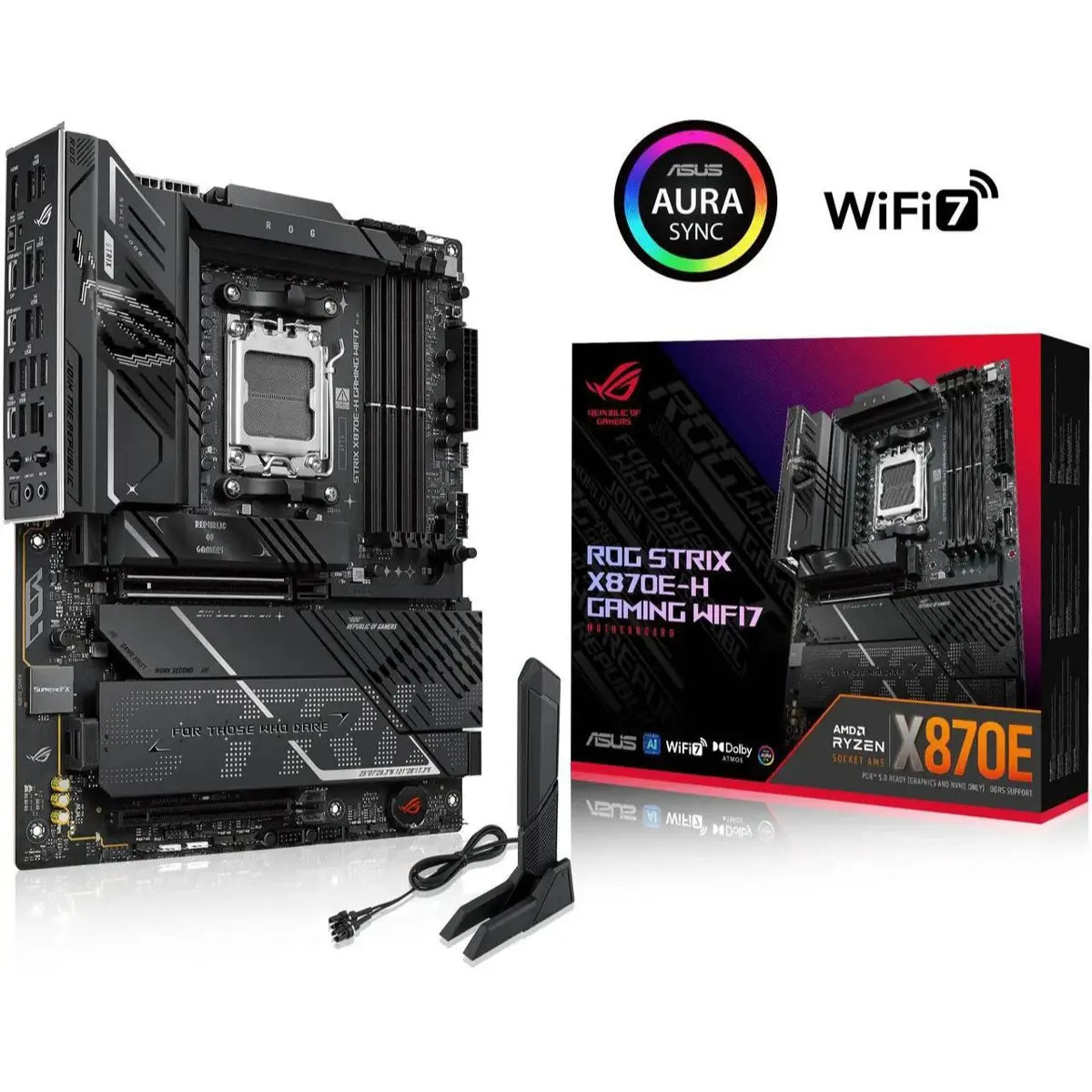

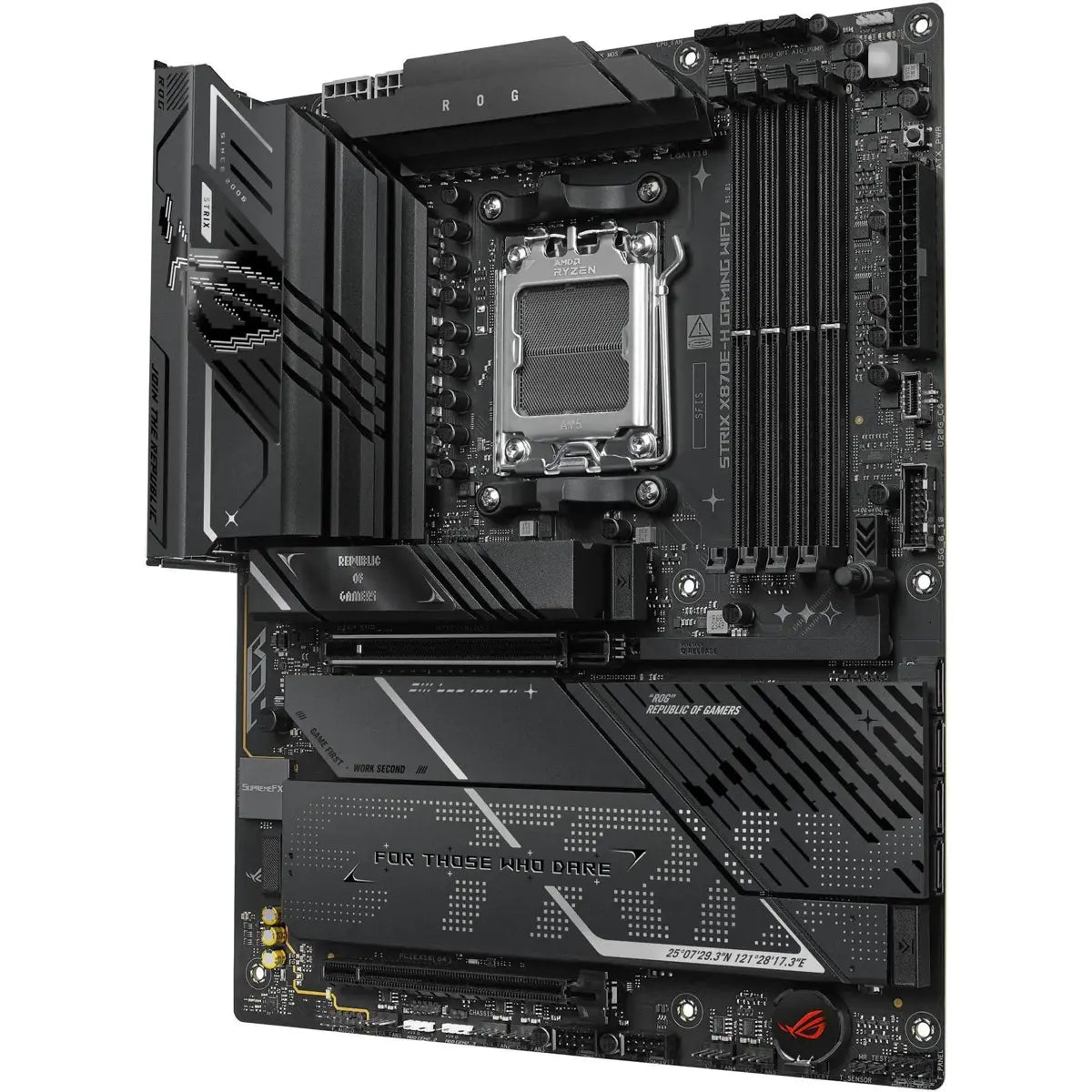

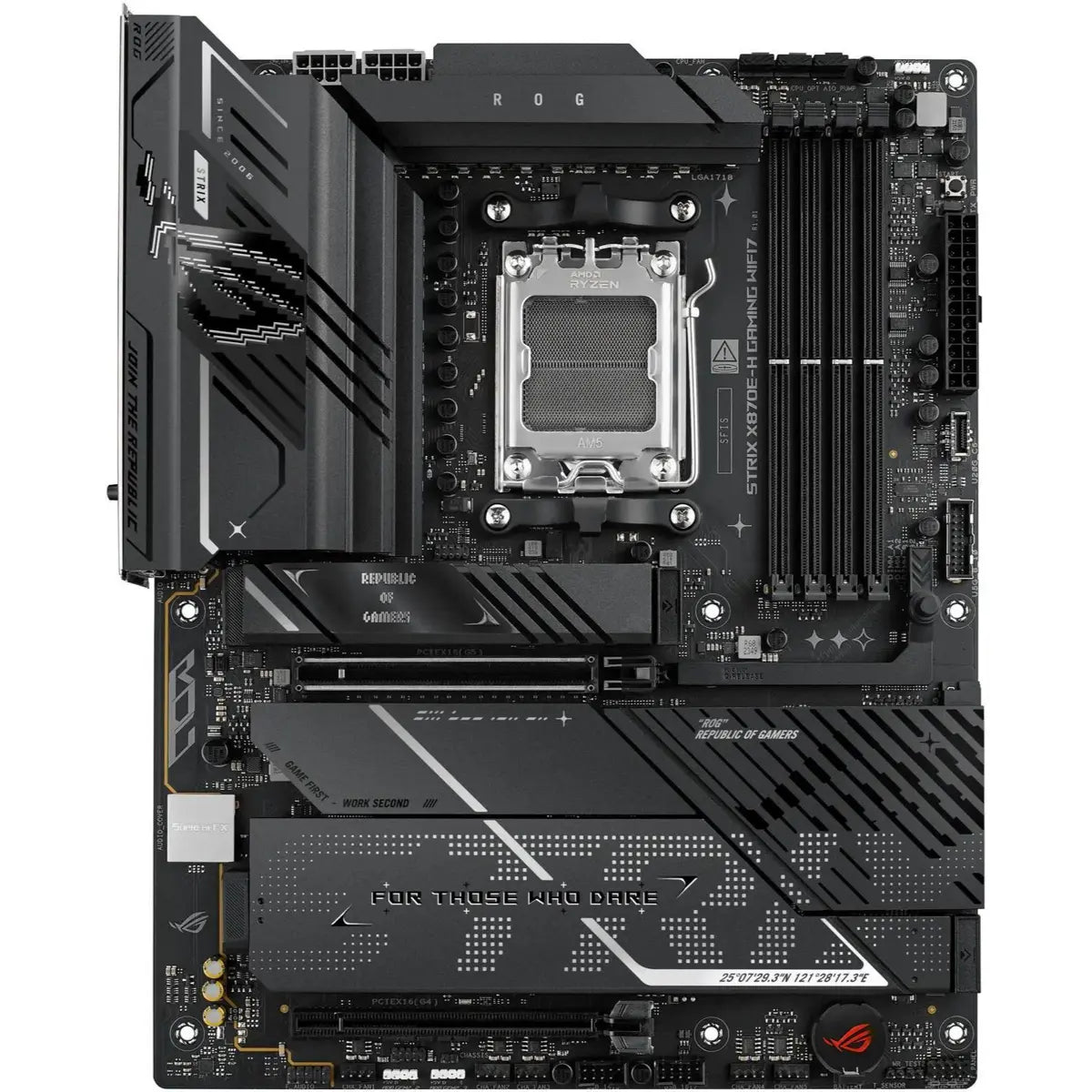

ROG STRIX X870E-H GAMING WIFI7
Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.
DDR5 DOMINATION
The Strix X870E-H is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.
DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
M.2 HEATSINKS
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
WIFI 7
The revolutionary WiFi 7 is faster than standard WiFi 6*, thanks to tech like 160 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Disclaimer: The availability of WiFi 7 varies according to regional regulations.
PCIE 5.0
Fully embracing the new standard, the Strix X870E-H offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is also protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. Meanwhile, two of the onboard M.2 slots are geared for blistering 16 GB/s read and write speeds, while the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.

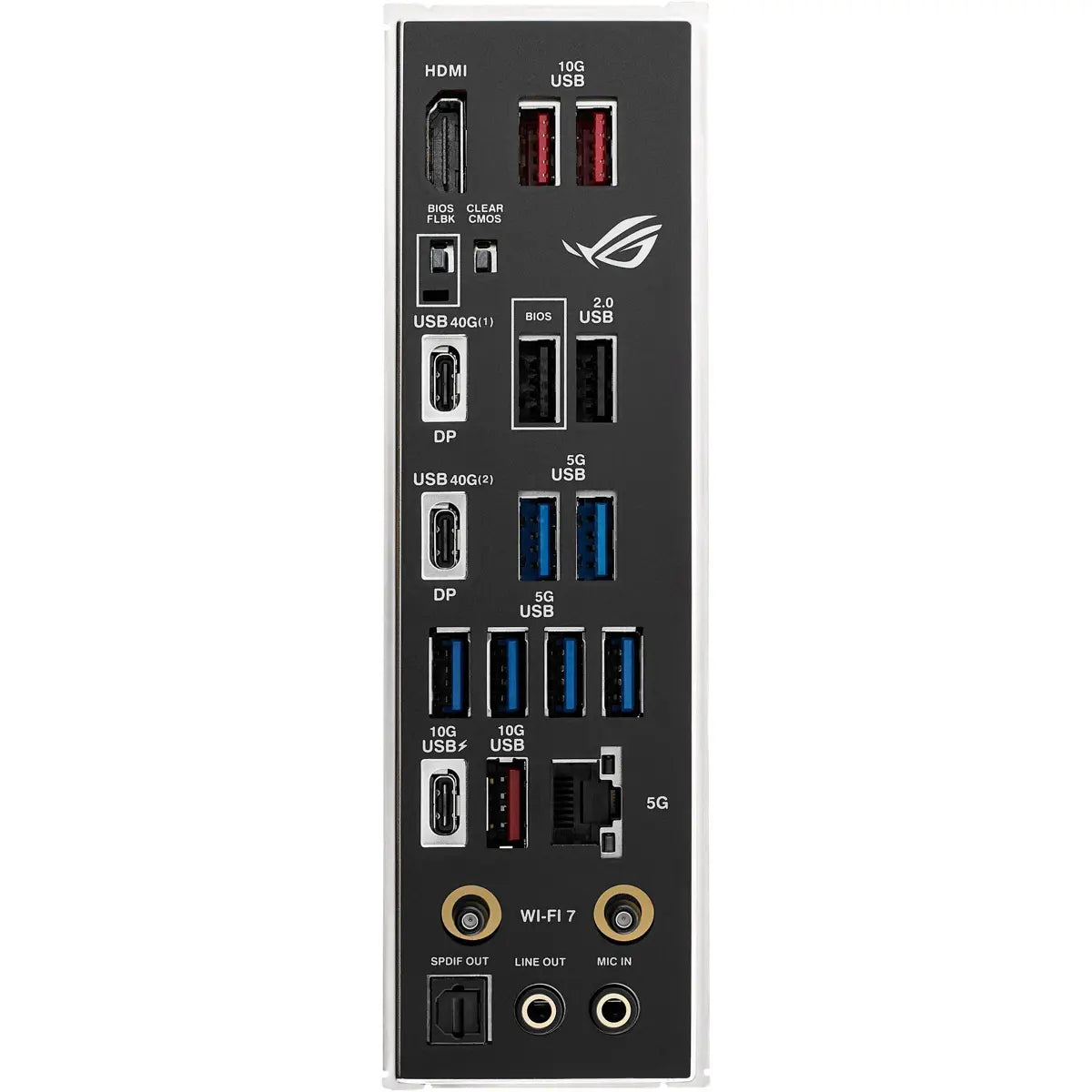

DUAL USB4® PORTS
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.*
*VGA resolution support depends on CPU or graphic card capabilities.
USB WATTAGE WATCHER
USB Wattage Watcher allows users to monitor the current wattage delivered to a device connected to the USB 10Gbps Type-C® rear I/O port. With USB Wattage Watcher, users can glance at their device's charging wattage in real-time and check on their device's Fast-Charging status.
DOLBY ATMOS
ROG and Dolby® have partnered to bring superior gaming audio quality to users. Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above, below and around the listener.
SupremeFX
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix X870E-H implementation features the ALC1220P codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
